Brake cooling plates suitable for Golf 4 R32

An important component in motorsport is good brakes. Since the series performance often starts to fade when driving on the racetrack, we have developed these anchor plates with hose connection for the GOLF 4 R32. We set the hose connection so that it leads the supplied air directly through the disc pot. This cools the pane effectively and, above all, evenly.

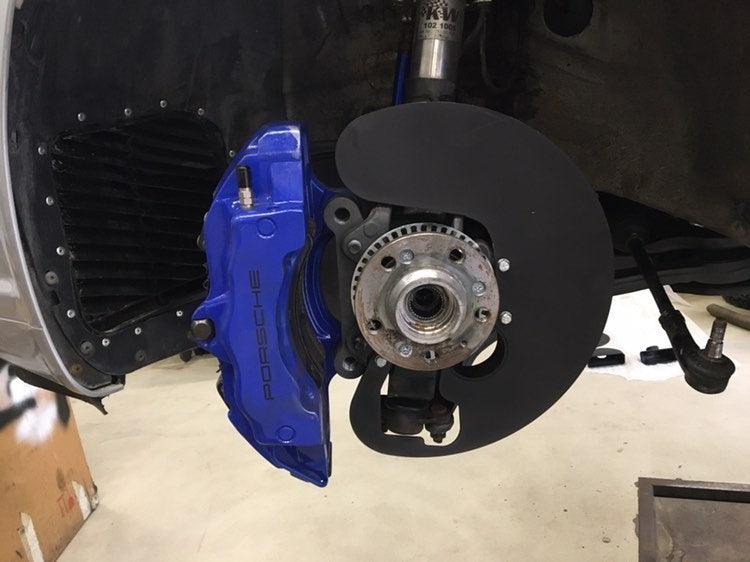

The sheets are fastened using the M6 ​​hexagon screws supplied. These are mounted at the original mounting points. There is no need to do any mechanical work on the steering knuckle for installation.

The sheet metal also covers the lower bearing. The pictures show the prototype, but this was not yet the case.

Scope of delivery:

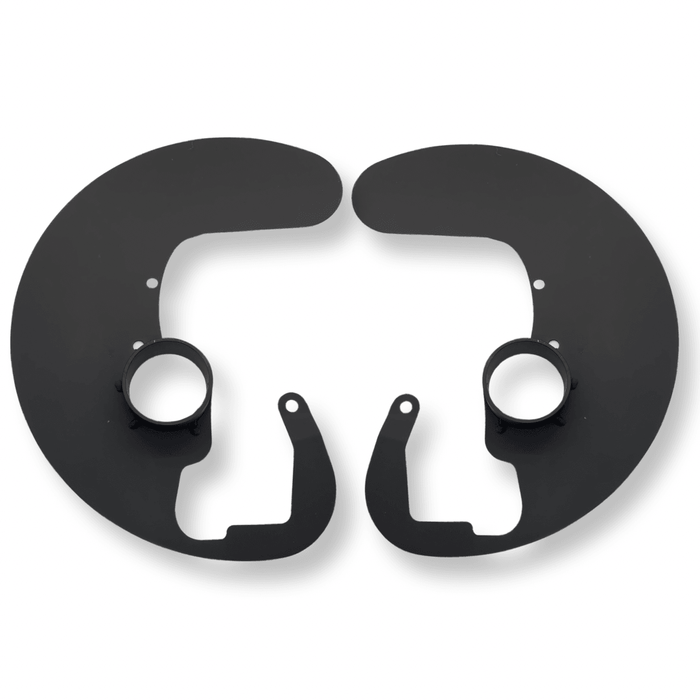

- 2x anchor plate suitable for Golf 4 R32 60mm hose connection unless otherwise requested

Motorsport component:

This component is an item designed and manufactured for motorsport, therefore it is not approved for vehicles in general road traffic.
When used on a vehicle registered for road traffic, the user must independently check whether this will affect the operating license.

We therefore recommend that you coordinate the installation with your TÜV inspector beforehand!
